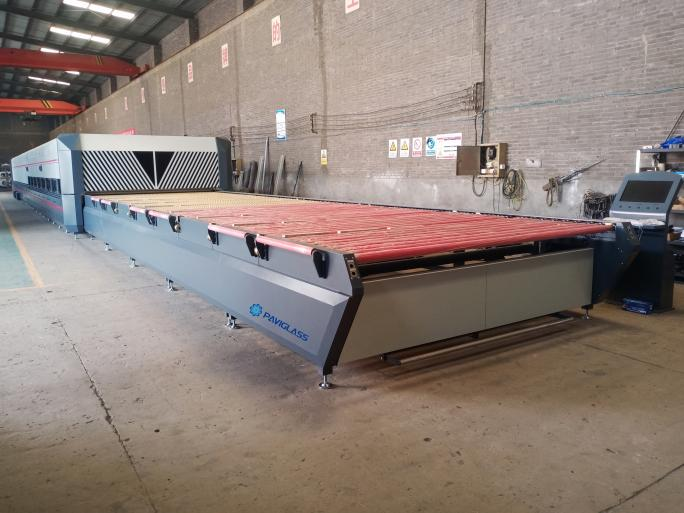

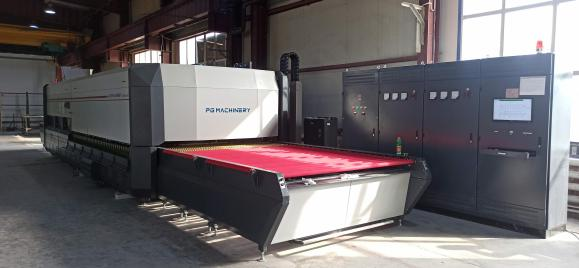

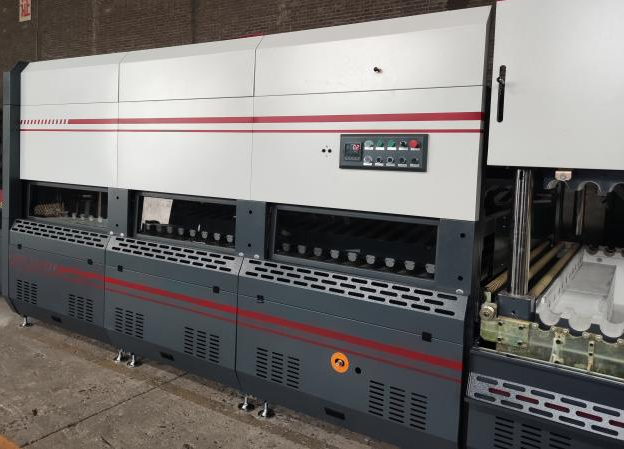

The mechanical configuration of bi-directional glass tempering furnace for tempering flat and bent glass consists of loading table, heating furnace with full jet convection systems, flat quenching/ cooling section, two bent quenching / cooling sections, unloading table, air ducting and blower systems.

This tempering furnace is mainly used to produce high-quality flat and curved tempered glass for furniture, home appliances, automobiles, ships, architectural decoration and other applications.

1. Fully automatic molding technology, no mold required, can produce multi-curvature tempered glass.

2. Unique spiral matrix heating method and zoned furnace temperature control system ensure the balance of glass heating and the rapidity and accuracy of temperature response.

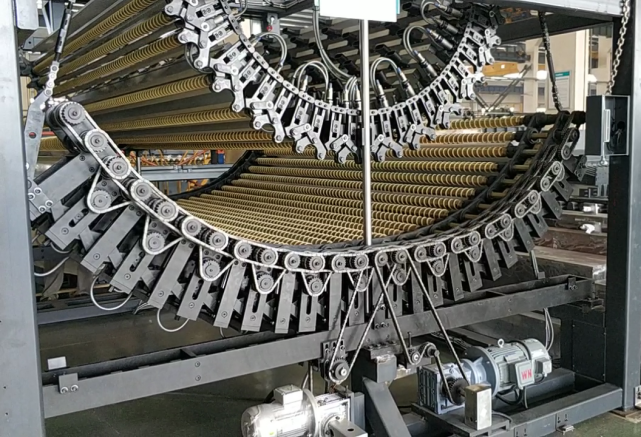

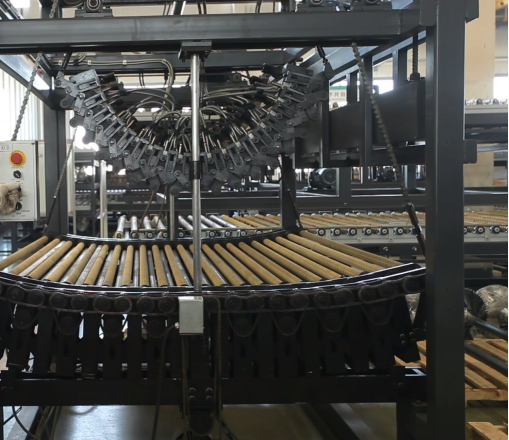

3. Special designed mechanism assures any point of the glass be bent at the same rate simultaneously in the bending process so as to reduce or avoid any cracks taking place at the front edge of the glass.

4. Optical quality of the glass is guaranteed by accurate control over the bending process of glass sheet with servo motor system.

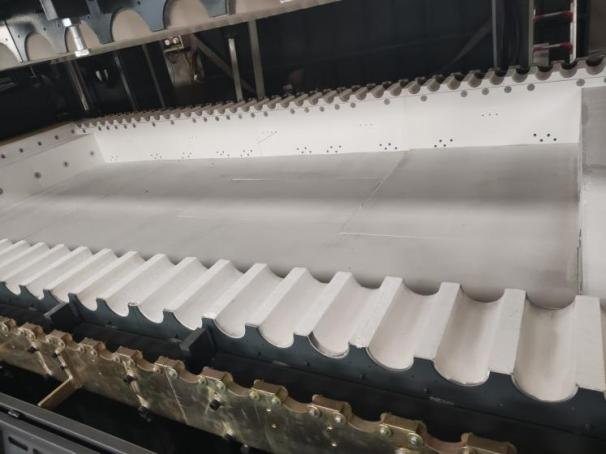

5. Unique insulation laying process makes sure better insulation and lower consumption.

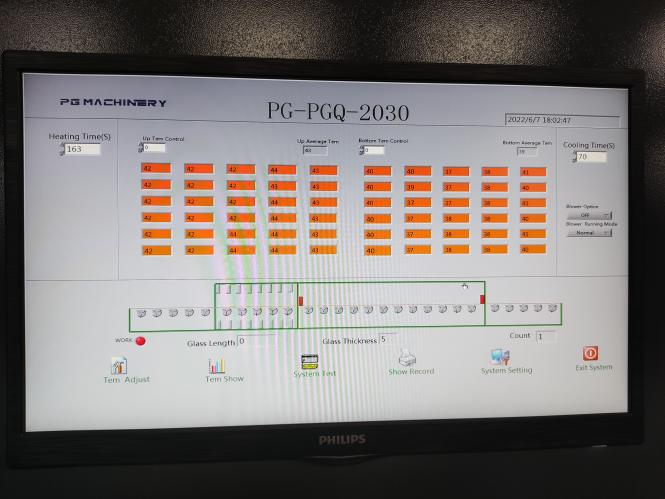

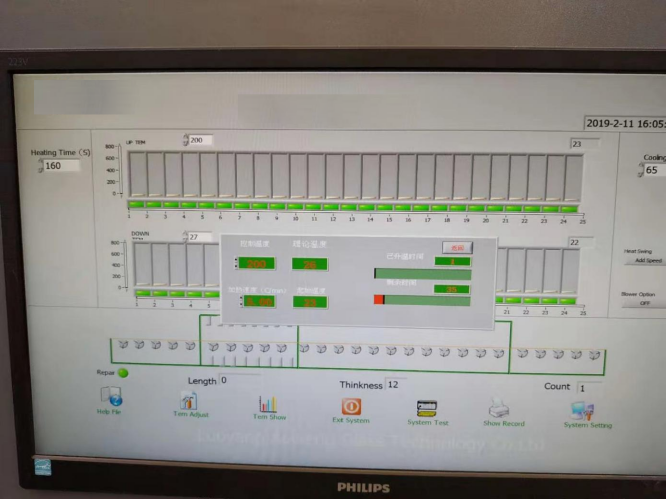

6. Powerful control system ensures highly automated production, friendly human-machine interface, simple and easy to operate.

7. Available to process various float glass, patterned glass, coated glass, etc.
