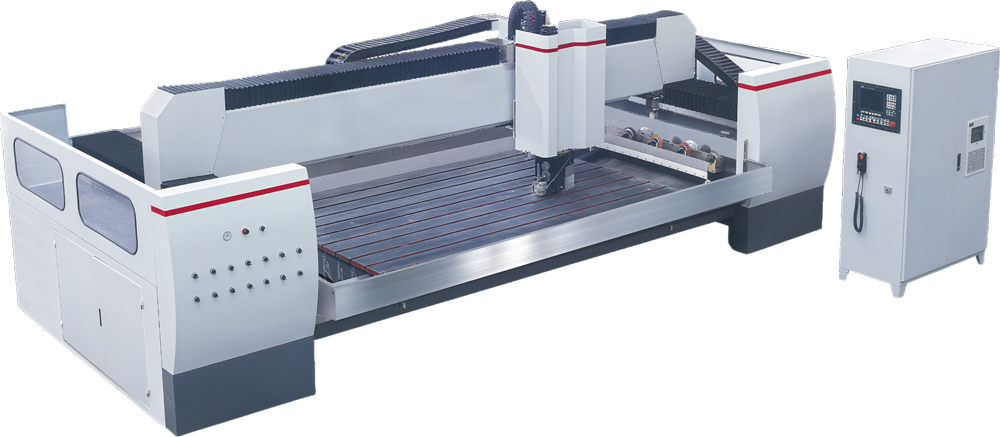

CNC glass groove machine is numerically controlled and used to engrave straight line and curve on the surface of flat glass of certain size, it can process 1~20 pcs glass with same size and same drawing.

The procedure is: design any kind of engraving picture as you like in the computer, enter related engraving information, change these information into NC code, NC code will be changed to G code by numerical control system. The numerical control unit will use these code to coordinate and control the spindle movement along X,Y,Z,C axis and main spindle rotating, in this way the desired engraving picture will be made out. The shininess of straight or curve line will be almost the same as glass itself after being polished. Change the tools by automatic.

1. CNC system uses PC + motion controller control mode, a high-performance, flexible configuration, easy to use, and high reliability.

2. CNC system can use English operating interface, fault diagnosis and alarm processing path graphic display, simple operation, easy to learn and use.

3. International standard G-code programming process is compatible with a variety of popular CAD / CAM automatic programming system, with linear and circular interpolation, cutter compensation function.

4. Pitch and backlash compensation.

5. Y-axis gantry synchronization control function, synchronization accuracy of feedback regulation and control, to ensure the accuracy of the real-axis synchronized motion.

6. Modular PLC digital and analog I / O interfaces, expansion convenient, easy system upgrades.

7. CNC system and CAM software run in the same PC.  User can use CAM software to draws the program and generate the processing code, then send the NC code directly to CNC systems, streamline operations, saving processing time.

8. CAM software comes with simulation capabilities, product processing before the actual process trajectory simulation run checks zero error processing.

9. CAM software support .dxf file import.

10. CNC system software and CAM software runs under Win-XP system

11. Polish: introduction of the grinding and polishing of setting compensation function in the system to meet the sustained and stable polishing effect.

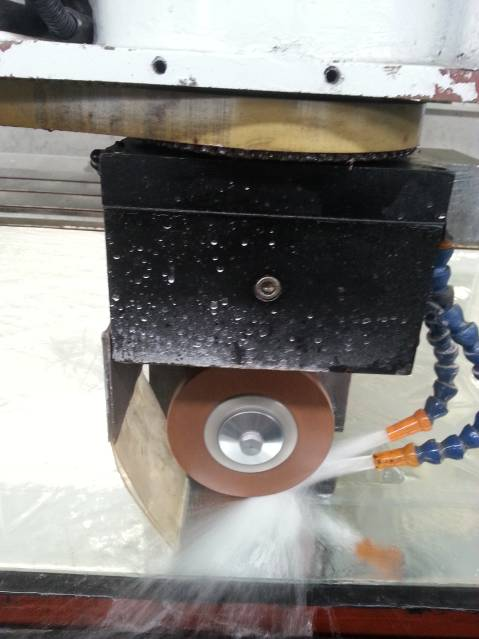

12. Main spindle: Maximum speed of up to 3,500 rev / min  to ensure efficient grinding.

13. Servo drive system: use digital servo drive and t absolute encoder servo drive motor.  CNC system and Servo drive use NCUC bus communication to ensure the control signal transmission speed and strong anti-interference ability. Accurate control of X, Y, Z of the feed rate and C-axis rotation.

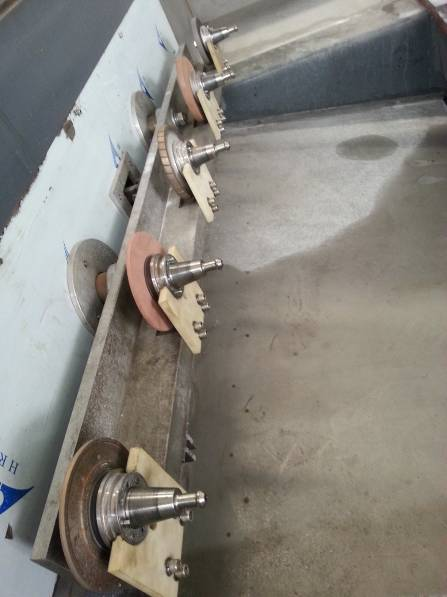

14. Automatic Tool Changer: 10 tools stored in the push-magazine, making the whole process from rough grind, fine grind and polishing at once.

15. Multi-Position: multi-position chucking glass, to ensure efficiency.

16. Precision ball screw and guide rail: ball screw and guide provided by the well-known Taiwan Company, Automatic centralized oil lubrication. Combined with effective waterproof, dustproof structure to ensure high-precision machining, and maximize ball screw and guide life.
