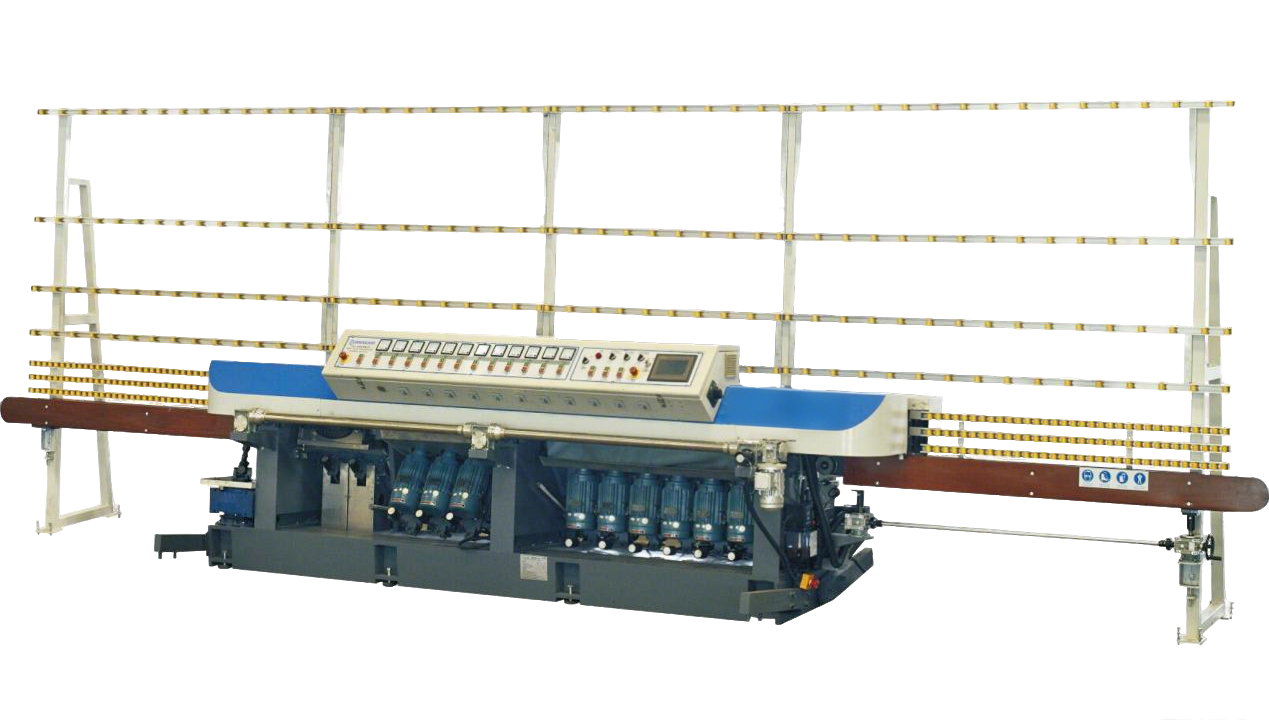

PGDJB Series Glass Straight-Line Mitering Machine

High-precision cutting

Straight line cutting accuracy of ±0.05mm, diagonal cutting accuracy <0.15mm (within 2000mm), the cutting surface is flat and smooth, without burrs or broken edges.

Efficient automation

supports automatic loading, cutting, and slicing. The maximum cutting speed can reach 400mm/s, and the production efficiency is more than 40% higher than that of traditional equipment.

Intelligent layout optimization

built-in professional cutting optimization software, which can automatically generate the optimal layout plan, reduce the waste of scraps, and increase the material utilization rate by 15%-20%.

Multi-function cutting mode

supports composite processing such as straight line, curve, special-shaped cutting, drilling, grooving, etc. to meet personalized customization needs.

Stable and reliable

marble precision table (flatness ±0.005mm) and aviation aluminum knife beam are used, and the airbag low-friction knife holder is used to ensure long-term operation stability.

Safe and easy to use

equipped with dual CCD lens positioning system, protective cover and emergency stop button, friendly operation interface, support parameter storage and quick call, and reduce the risk of manual intervention.

Typical application areas

Architectural glass

float glass, tempered glass, insulating glass, laminated glass, etc.

Industrial glass

ultra-thin glass (starting from 0.15mm), optical glass, touch screen glass, amorphous silicon solar cell glass, etc.

Decorative glass

float glass, tempered glass, insulating glass, laminated glass, etc.

Special glass

float glass, tempered glass, insulating glass, laminated glass, etc.

Product Parameters

No	ITEM	DATA
1	Spindles quantity	9-12
2	Bearing conveyor	optional
3	Processing glass thickness	3-25
4	Angle of arris	0-45°
5	Min. size of glass (mm)	50x50
6	Processing speed	1-6 m/min
7	Installed power	26.5KW
8	The dimension of the machine	7500×1350×2520(mm)
9	Weight	5500KGS
10	water tank material	Stainless steel

Configuration of grinding wheels: PADJB-11 Mitering machine：

	Wheel specification	Function	Wheel	Wheel control
Pos.1	150mmx12mm 80mesh	Bottom	Diamond wheel	Mechanical
Pos.2	150mmx12mm 100mesh	Bottom	Diamond wheel	Mechanical
Pos.3	150mmx12mm 180mesh	Bottom	Diamond wheel	Mechanical
Pos.4	150mmx12mm 240mesh	Bottom	Resin wheel	Mechanical
Pos.5	150mmx70mm	Bottom	10S40 wheel	Mechanical
Pos.6	150mmx70mm	Back arris	Polishing wheel X098	Mechanical
Pos.7	150mmx12mm 100mesh	Front arris	Diamond wheel l	Mechanical
Pos.8	150mmx12mm 240mesh	Front arris	Resin wheel	Mechanical
Pos.9	150mmx60mm	Front arris	10S40 wheel	Mechanical
Pos.10	130mmx12mm 240mesh	Back arris	Resin wheel	Mechanical
Pos.11	130mmx60mm	Back arris	Fine grinding wheel 10S40	Mechanical

Our Services

We provide full-cycle support including pre-sales consultation, in-sales coordination, and after-sales service to ensure a seamless customer experience from start to finish.
